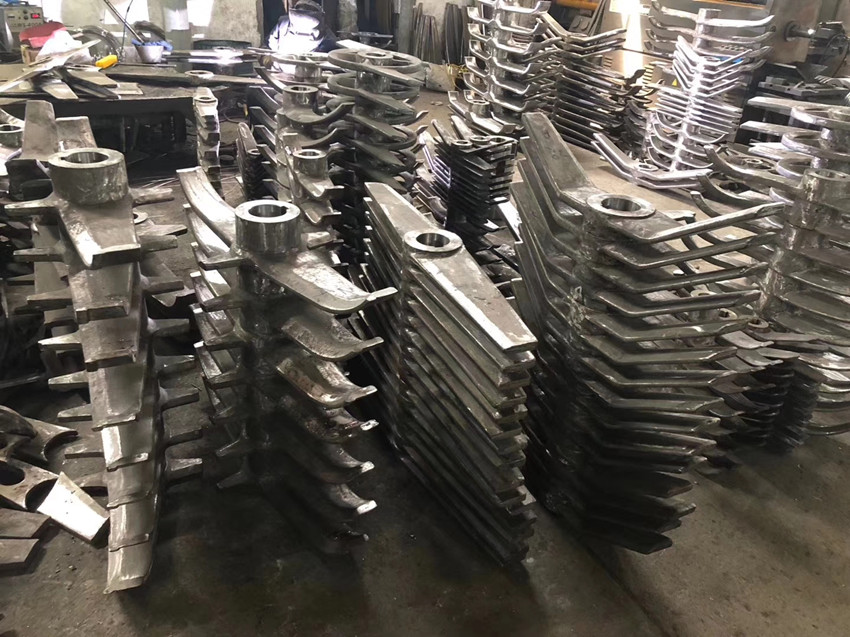

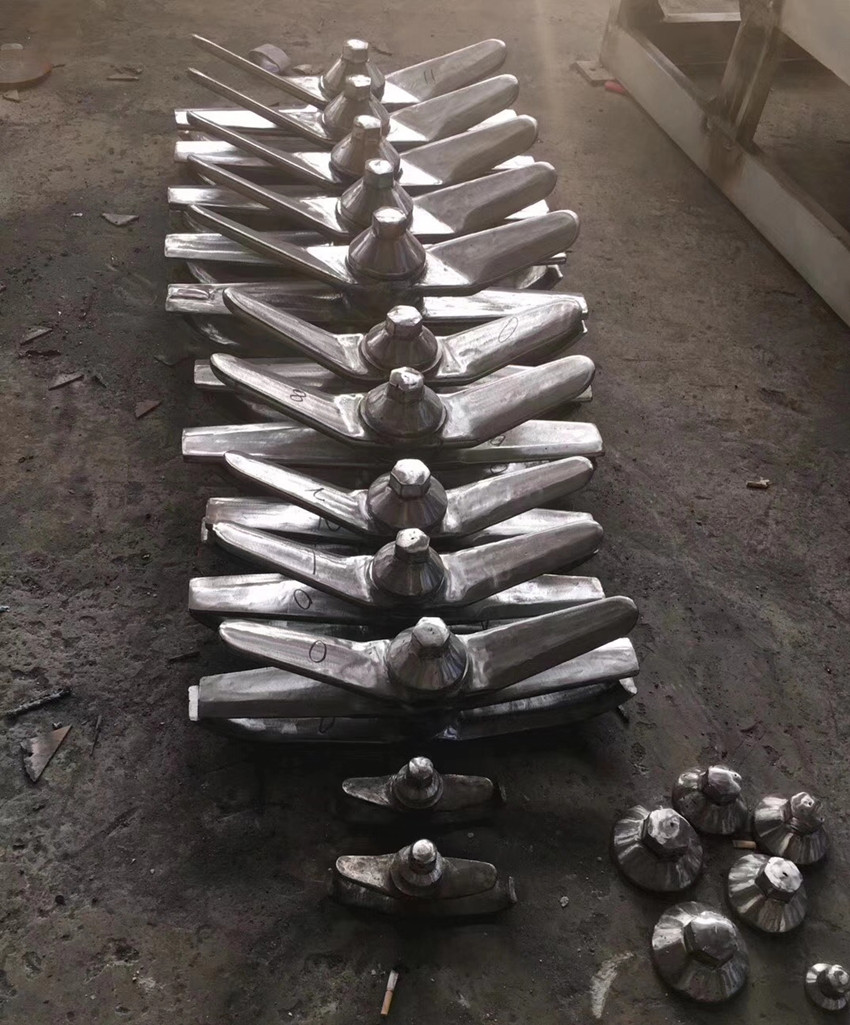

Mixer blade

Features of stainless steel high-speed mixer blade:

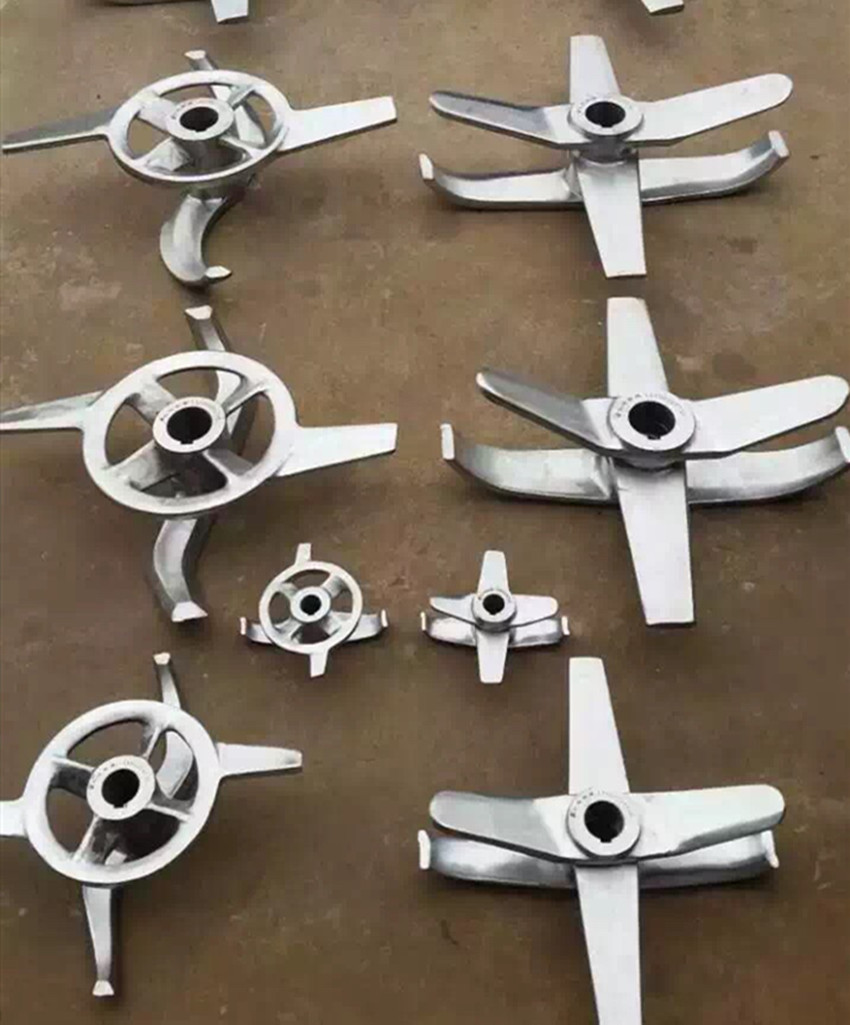

According to the characteristics of the material, stainless steel blades are available in two types: disc blades and three-type blades. The stirring blade is driven by the motor through the apex. It rotates clockwise, so that the material moves along the pot wall on the one hand, and at the same time it turns up and down circularly, processing the function of the deflector to make the mixing effect. Because the material moves at high speed, the friction heat between the particles and between the material and the paddle is very large, which increases the temperature of the material, which not only reduces the heating amount of the pot wall accordingly, but also helps the resin to pelletizer.
Absorption, stirring blades are made of stainless steel

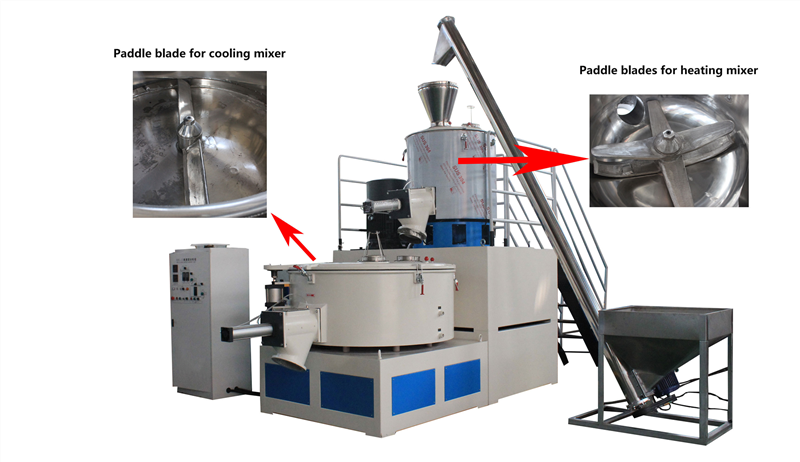

The configuration of the mixer blade is described as follows:

1. -SHR500A high-speed mixer has round bottom blades, the barrel diameter is 870mm, the barrel rounded corners are R200mm, the total blade height is 215mm, the inner hole of the blade is 80mm, and the keyway is 22mm. Material is stainless steel.
2. SHR300A high-speed mixer has round bottom blades, the barrel diameter is 750mm, the barrel body fillet is R180mm, the total blade height is 173mm, the inner hole of the blade is 75mm, and the keyway is 20mm. Material is stainless steel.
3. SHR200A high-speed mixer round bottom blades, barrel diameter 670mm, barrel fillet R145mm, total blade height 145mm, blade inner hole 60mm, keyway 18mm. Material is stainless steel.
4. SHR100A high-speed mixer disc blades, the barrel diameter is 670mm, the barrel fillet is R145mm, the total blade height is 131, the inner hole of the blade is 60mm, and the keyway is 18mm. Material is stainless steel.
5. SHR-25L high-speed mixer round bottom blades, the barrel diameter is 330mm, the blade fillet is R50mm, and the total height is 90mm. The diameter of the inner hole of the blade is 40mm, and the keyway is 12mm. The inner thread of the cap is M24X2 (reverse). Material is stainless steel.
6. SHR10A high-speed mixer round bottom blades, barrel diameter 250mm, paddle fillet R27mm, total height 55mm. The diameter of the inner hole of the blade is 32mm, and the keyway is 10mm. Material is stainless steel.

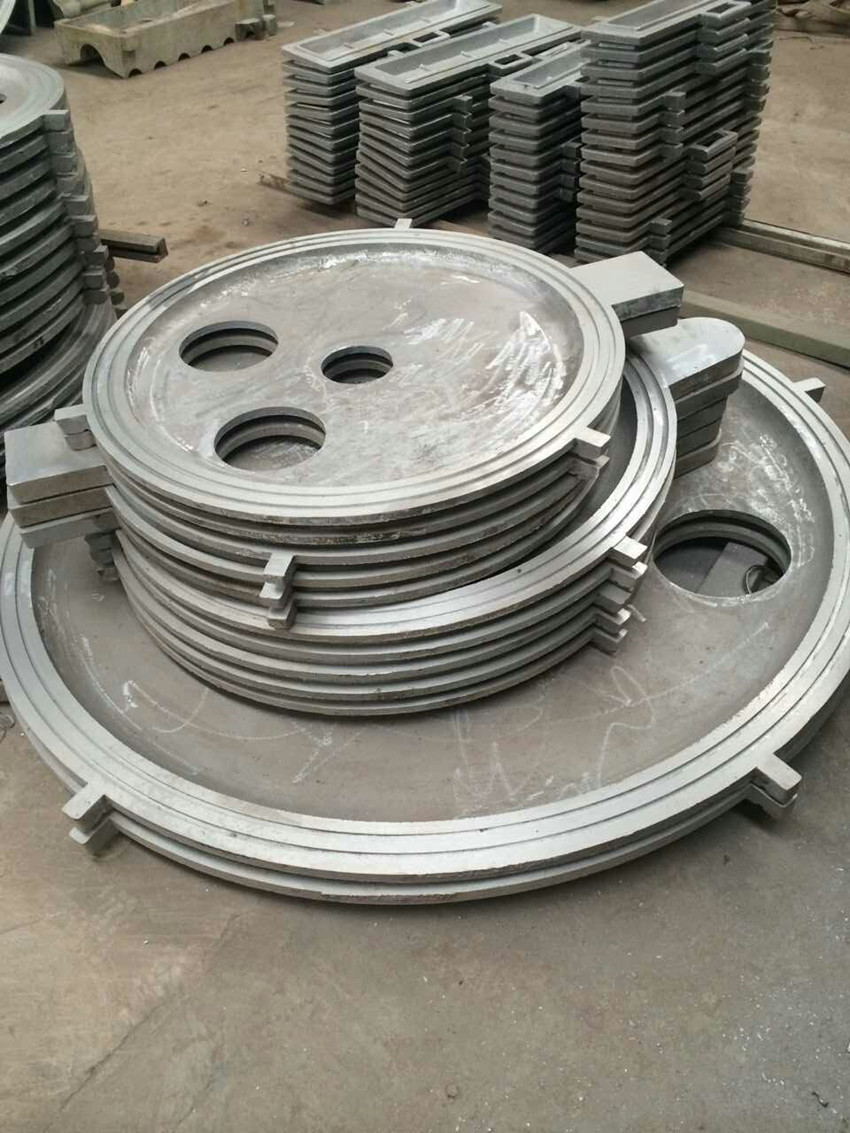

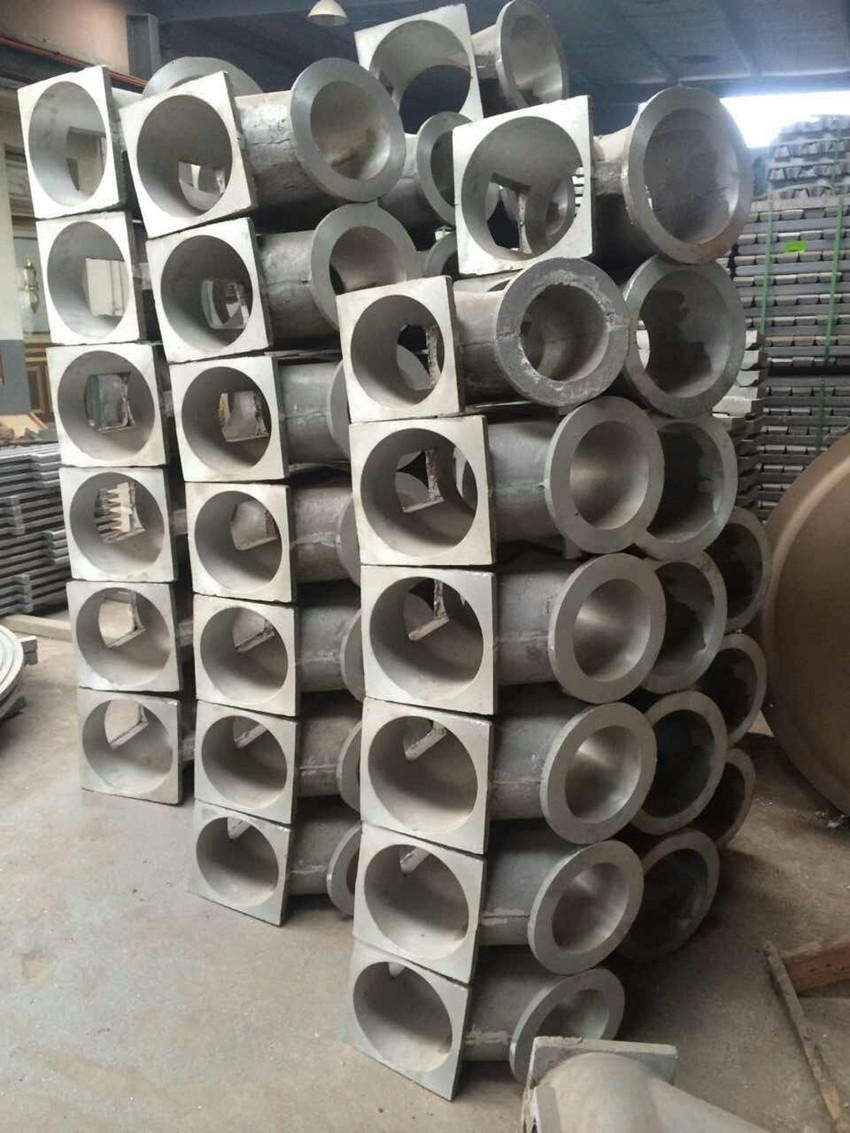

Other spare parts for mixer:
