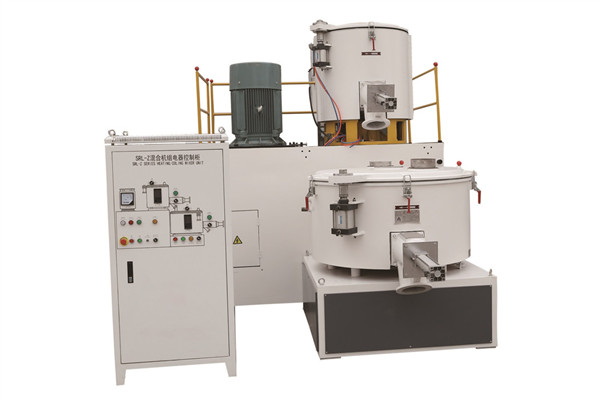

PVC mixer unit

Product Description
* Function: Used for mixing and drying.
* Suitable Materials: Thermoplastic powders or granules, chemical materials, liquid, rubbers and so on.
* Discharge Method: By pneumatically
* Independent electrical box
* Electricity Brand: SIEMENS
* Contactor: SIEMENS
* Switch: SHINEIDER
* Temperature Control Meter: RKC or Omron
* Inverter Brand: ABB
* Motor Brand: SIMO or SIEMENS BEIDE * MIXING TEMPERATURE: 128-130C, temperature is adjustable



The pot body is made of δ8mm SUS304 stainless steel plate, which has the characteristics of wear resistance, corrosion resistance and high temperature resistance. The inner surface is extremely smooth and hard after polishing, and it is not easy to stick to the material.

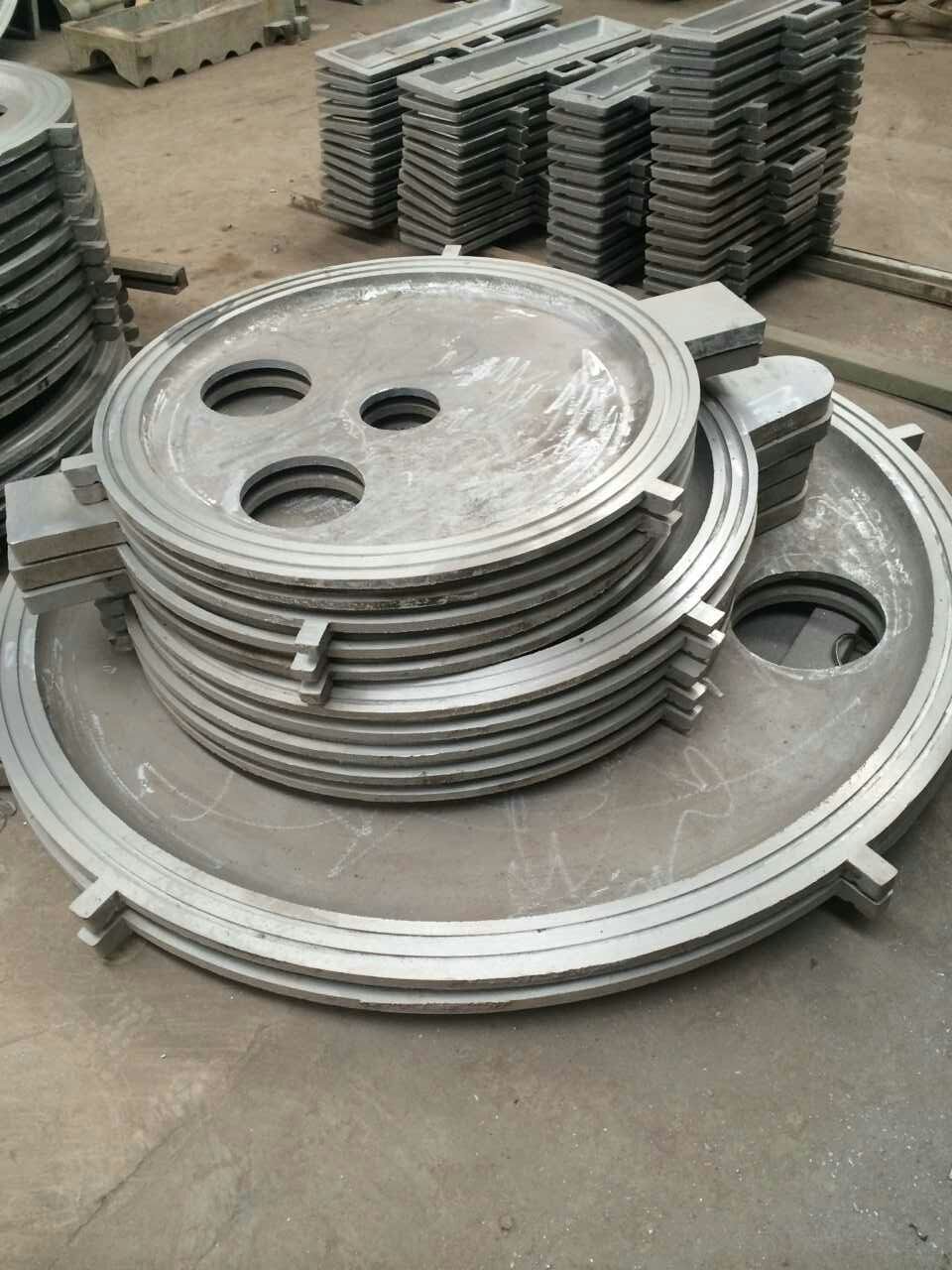

The lid of the pot is made of ZL102 cast aluminum, which is not easy to stick to the material and can be opened easily.

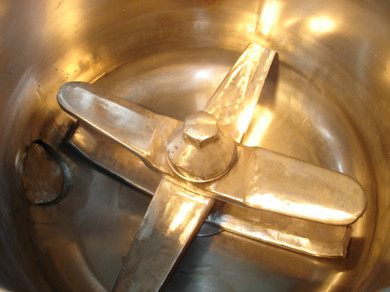

The bottom of the pot is made of δ10 mm SUS304 stainless steel, and the stirring blade is made of sus304 stainless steel. The surface is polished, and the surface is smooth and hard, wear-resistant and corrosion-resistant.

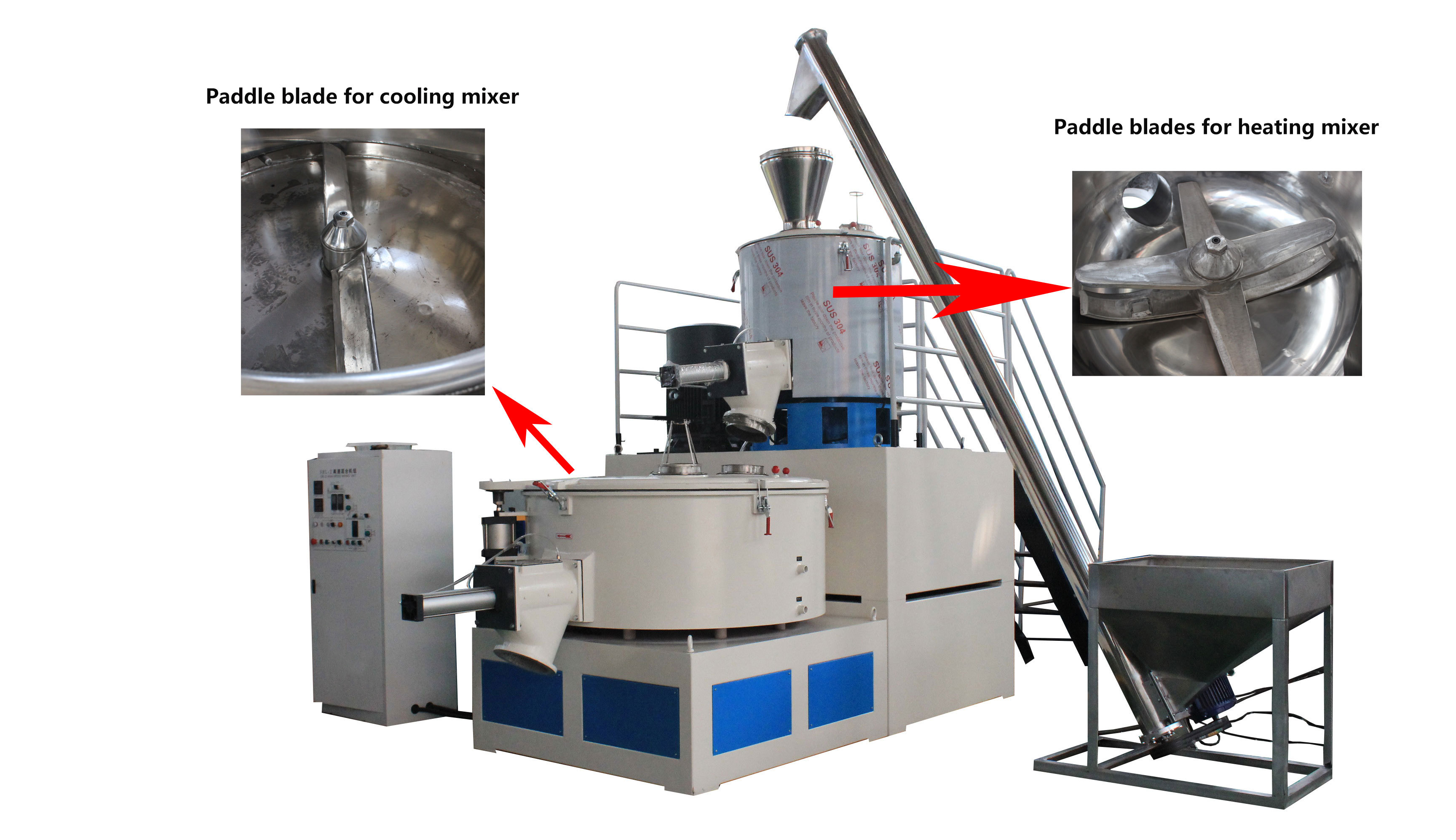

The cylinder opens the lid. The cooling of the material by cold mixing is carried out by passing water through the interlayer of the drum and the interlayer of the cover; the main shaft of the cold and hot mixing adopts three sets of deep groove ball bearings, and the cold mixing adopts spherical roller bearings and cylindrical roller bearings, which ensure reliable operation. , The performance is stable.

Electrical part
According to customer's demand, Kinden also can provide customized electrical box, such as one for control, another for connect wire without control




Specification

Model	Capacity(kg/batch)	Heating power(kw)	Cooling power(kw)
SRL-Z200/500	75-80	45	11
SRL-Z300/600	100-120	55	11
SRL-Z500/1000	180-200	75	18.5
SRL-W500/1000	180-200	75	18.5
SRL-W800/1600	250-300	110	22
SRL-W800/2000	300-350	110	22
SRL-W1000/3000	400-500	160	30
